5 Tons Scissor Lift Steering Wheel Cart

Product Categories

Henan Remarkable Intelligent Technology Co., Ltd

Contact Now

5 Tons Scissor Lift Steering Wheel Cart

Name: 5 Tons Scissor Lift Steering Wheel Cart
Brand: Remarkabl
Price: 1 USD

Wholesale 5 Tons Scissor Lift Steering Wheel Cart from china suppliers

Brand Name : Remarkabl

Model Number : KPX/RGV/RWP/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Transfer Trolley

key word : Transfer Cart,coil Transfer Trolley/battery transfer cart ,transfer trolley, industrial rail transfer cart, electric flatcar motorized equipment, battery powered material handling cart,rail transfer trollley

feature : High temperature resistance，explosion-proof，customized

Flat Size : U/V/roller/lifting/explosion-proof/high temperature/Customized

Load Capacity : 1-1000 tons

Material : Welded construction of structural steel，Box girder structure

Model : Explosion Proof Rail Transfer cart

Operation Mode : Remote Control/Handle remote control/Manual /PLC

Running Speed : 0-25m/min Stepless speed regulation/ Customized

Safety Device : Limit switch，RFID,Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor

Warranty : 1 year

Wheel Material : steel wheel

Application : Industrial Filed, Building,military industry，steel/Metallurgical casting/Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Contact Now

5 Tons Scissor Lift Steering Wheel Cart

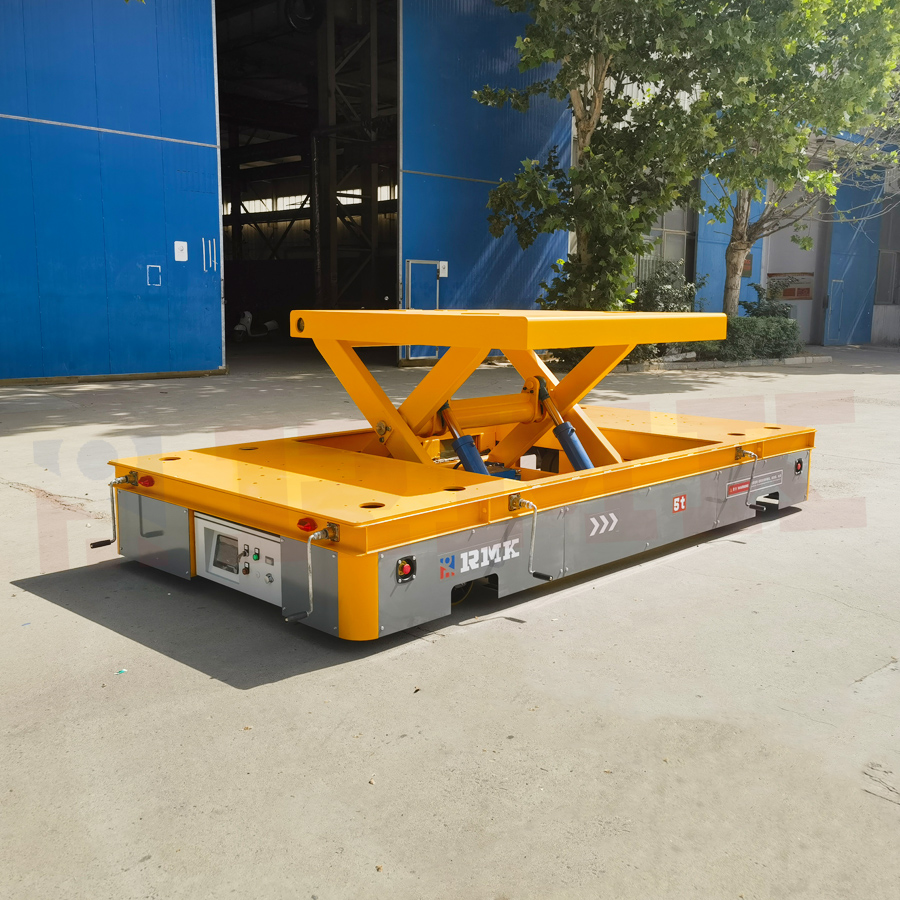

^{5 tons scissor lift steering wheel cart is powered by batteries and uses polyurethane coated wheels. It has high hardness and strength, which can effectively resist high-strength impacts, wear resistance, and frequent use will not cause performance degradation. It also has the characteristics of anti-static and flame retardant.}

^{The frame structure adopts a mesh structure welded from high-quality steel plates and profiles. The structure, mechanical system, and safety protection devices (strength, stiffness, stability, and anti overturning performance of flat cars) of the cart all comply with current relevant specifications and standards. Each institution can operate safely and reliably, and its vibration, noise, and environmental protection all meet the requirements of current relevant standards.}

Technical parameters for rail power transfer carts
Model		KPG-6t	KPG-10t	KPG-16t	KPG-25t	KPG-40t	KPG-63t	KPG-100t	KPG-160t	KPG-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
(mm)	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1100	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1435	1435	1650	2000	2000
Wheel diameter(mm)		400	400	400	500	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Minimum turning radius		30		35	50	55	60	80	100	100
Power mode		Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered
Recommended track model		24kg/m			38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5

5 Tons Scissor Lift Steering Wheel Cart
